The Brodbeck Basic 2x72 Grinder

The Brodbeck Basic Package

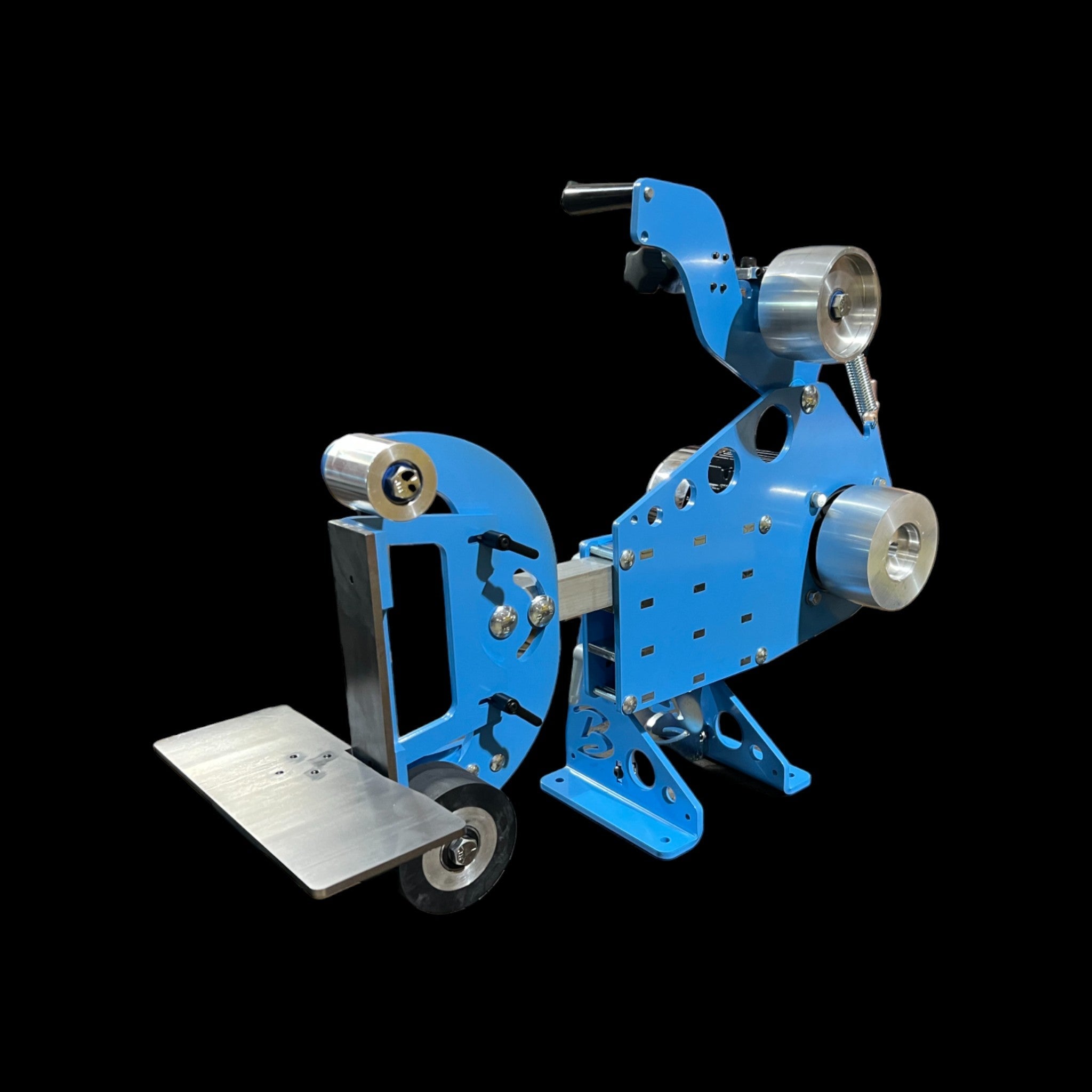

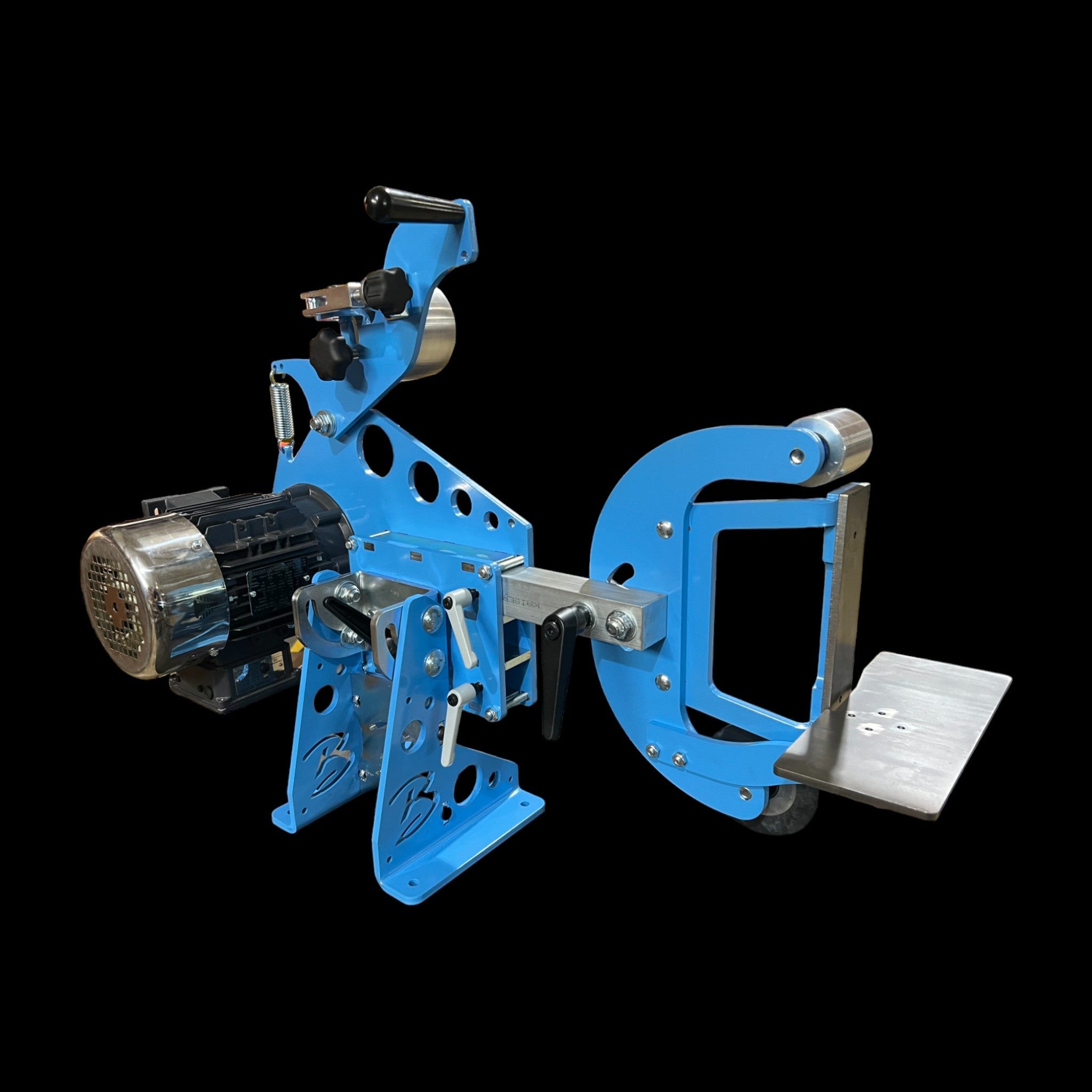

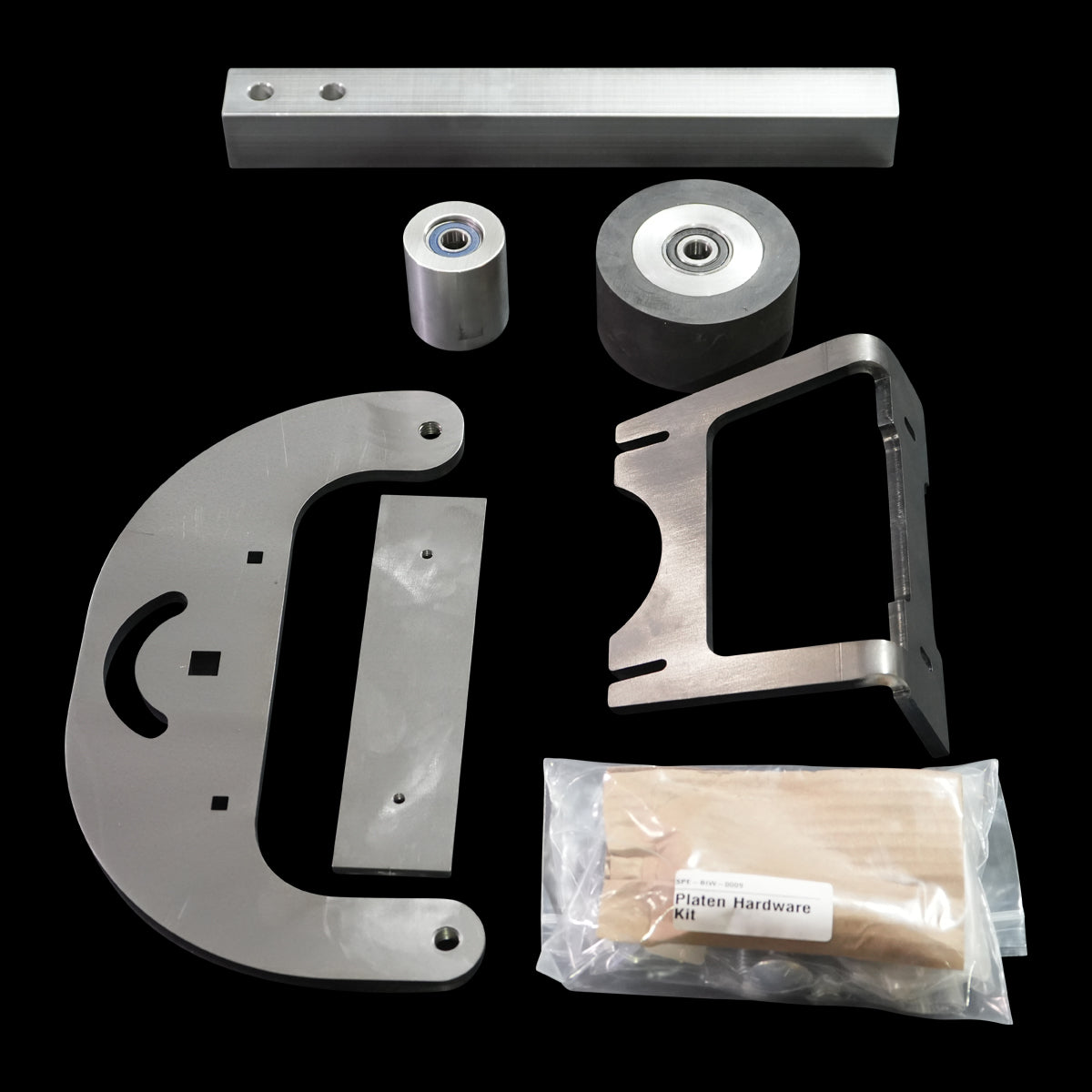

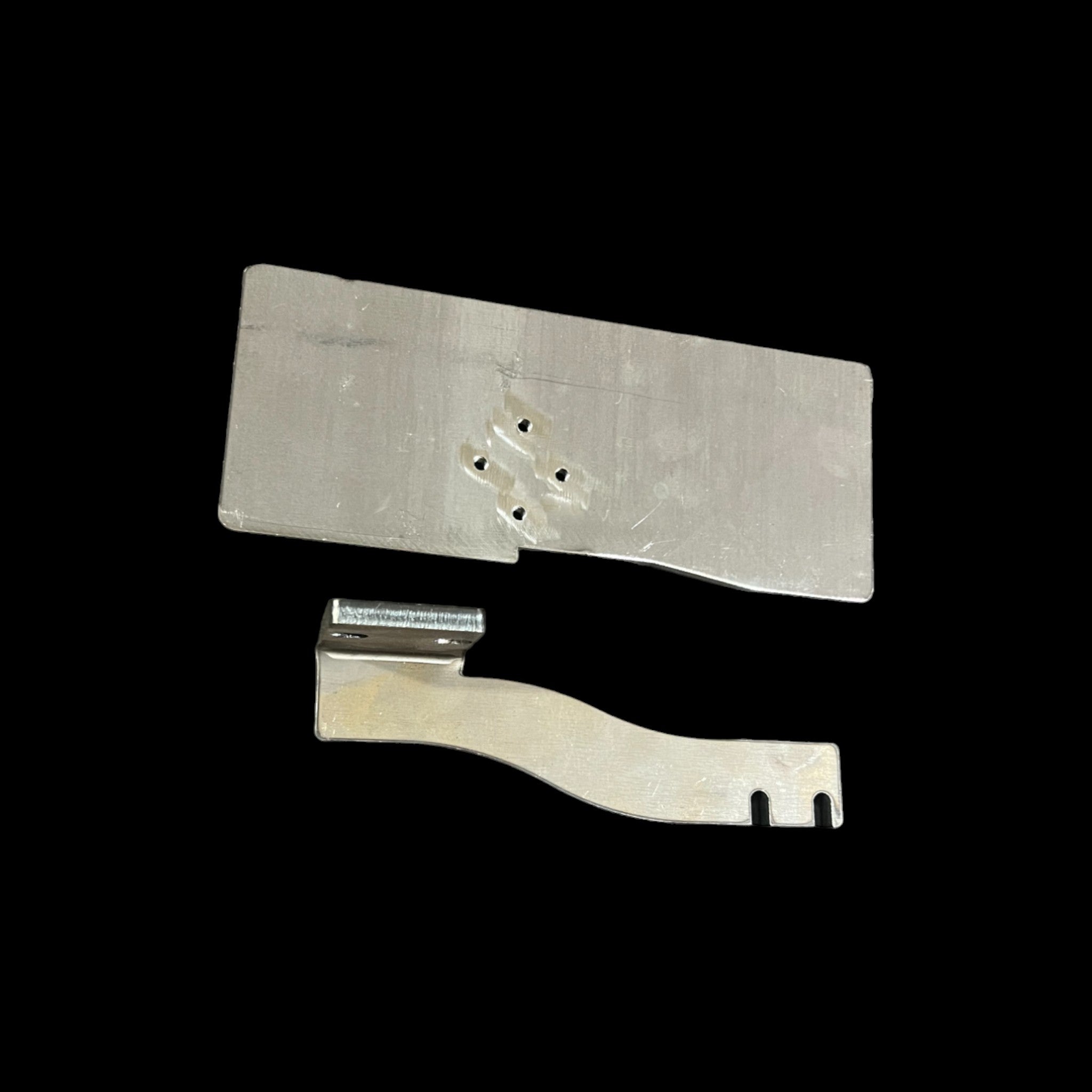

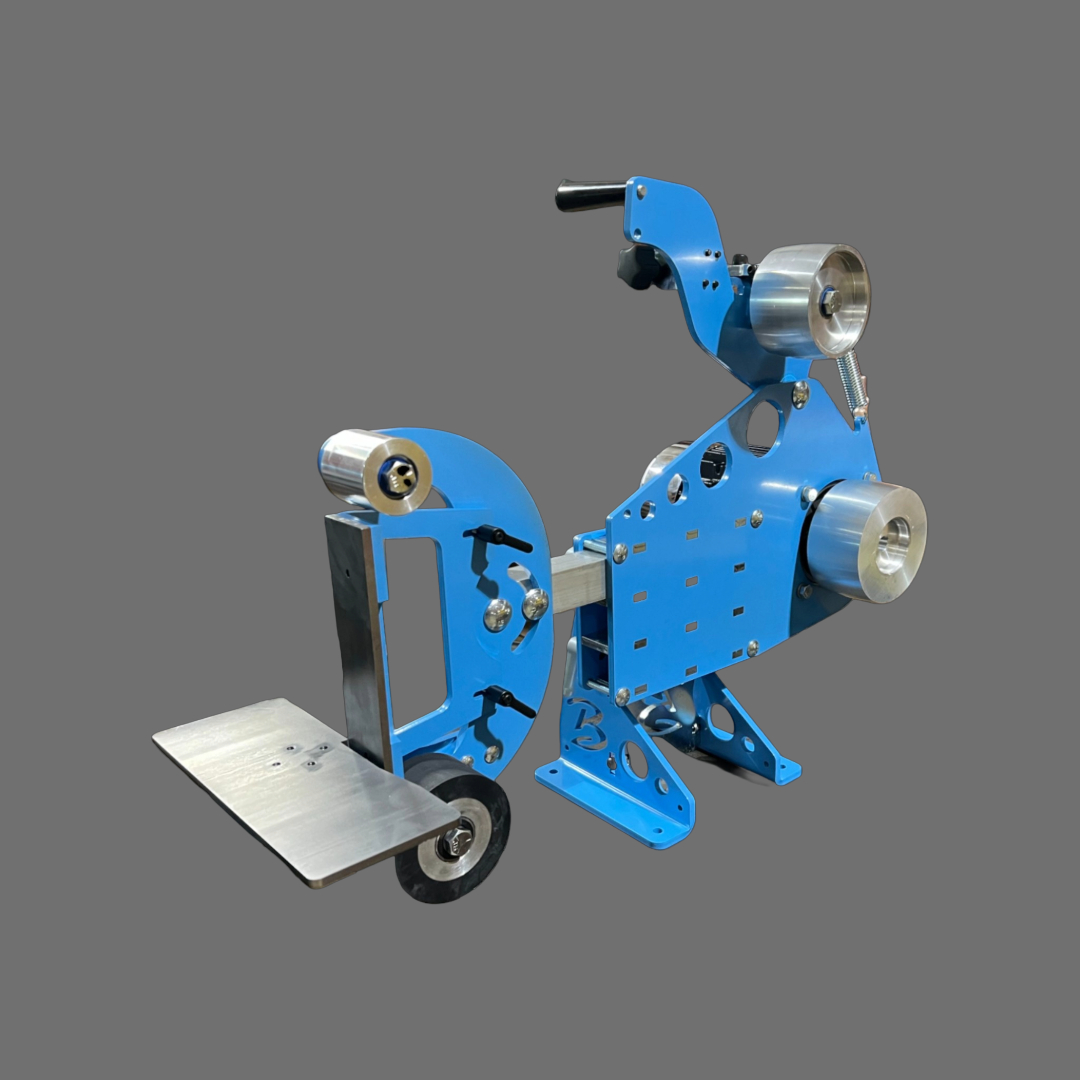

The Brodbeck Basic Package includes our tilting Chassis, Mareko Flat platen, and Basic Work Rest. This package uses the same chassis as our other packages except for the adjustable work rest. It is intended as a lower cost option without having to buy a lower quality or lower functionality machine. The Basic Package still allows our customers to use all our attachments.

The chassis includes all parts & hardware items to assemble the grinder. This kit includes aluminum wheels: 2” Platen, 4” Tracking, and 5” Drive with 5/8” bore (other sizes can be requested at an additional cost).

We have many motor options. The 1 HP Variable Speed setup offers the best value and versatility.

Chassis kits include all parts and hardware needed for assembly. including the following wheels: 2” Platen, 4" rubber coated Platen, 4” Tracking, and 5” Drive with 5/8” bore (other sizes can be requested at an additional cost).

Motor Options:

No Motor: You have the option to source your own motor or use a motor you already have.

Note:

Please note that Brodbeck Ironworks will not be responsible for providing customer service or warranty support for motors and VFD purchased from another vendor.

Single Speed 1.5 HP: Works with 110V single phase (household voltage), with On / Off Switch.

Note:

Please note a single speed motor limits the attachments the grinder can support to the Mareko Flat Platen, Small Wheel Attachment, and Large Contact Wheels.

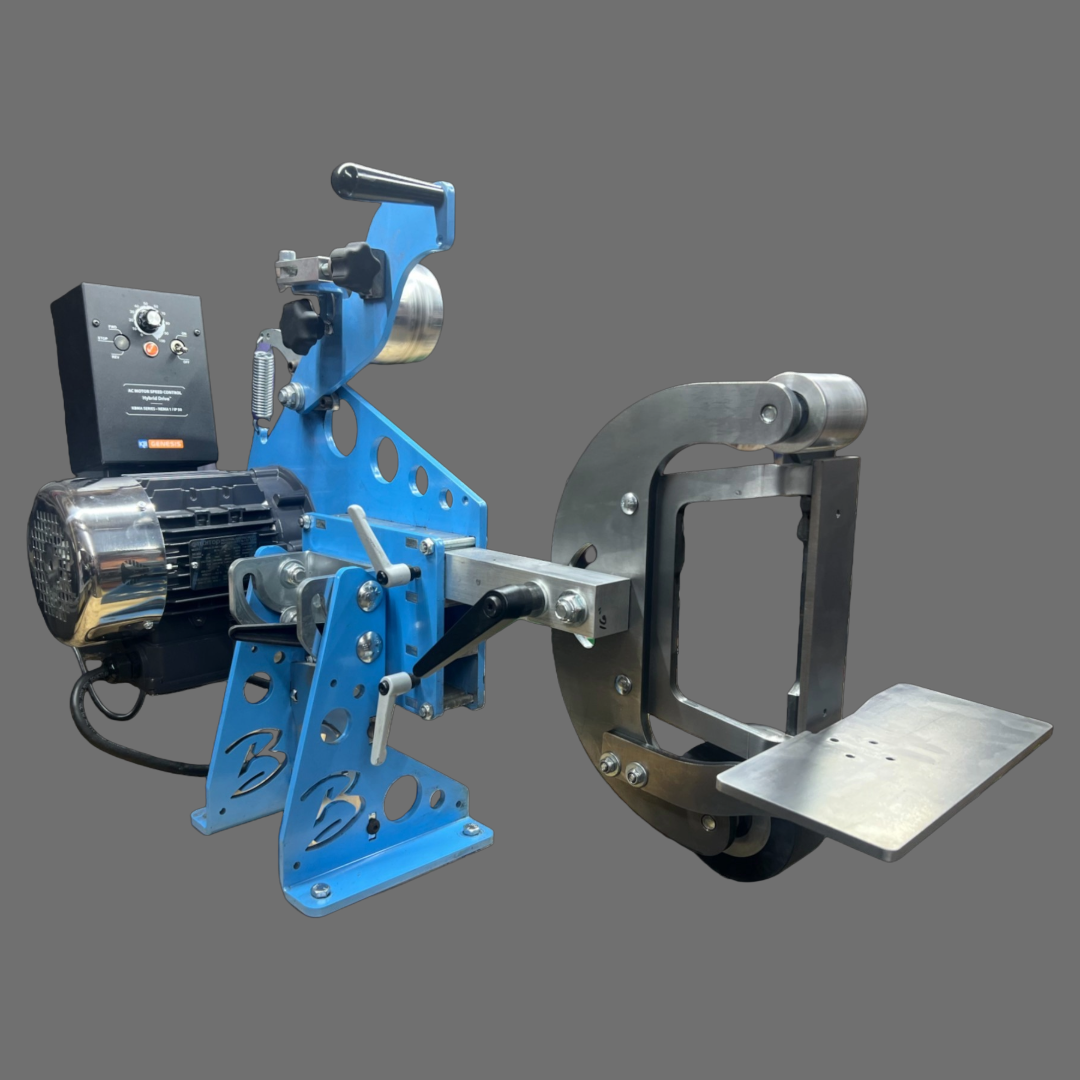

Variable Speed 1HP: Works with 110V or 220V single phase voltage. The variable speed control KBAC 24 VFD, includes wiring kit and start/stop switch.

Note:

Please note the Waterfall Platen cannot be used with a 1 HP variable speed motor.

Variable Speed 2HP: Works with 110V / 115V or 220V / 230V single phase voltage. The variable speed control KBAC 27D includes the wiring kit and start/stop switch. The motor is a 2HP 230/460V 3-Phase 60 HZ 6.2/2.9A 3600 RPM TEFC.

Notes:

The variable speed control also serves as a phase converter needed to operate the 2HP 3 phase motor included in the package. YOU DO NOT NEED 3 PHASE VOLTAGE IN YOUR SHOP.

Powering the unit with 110V / 115V reduces motor output from 2HP to 1.5HP

Variable Speed 3HP: Works with 220V single phase only. The variable speed control KBAC 29 includes wiring kit and start/stop switch.

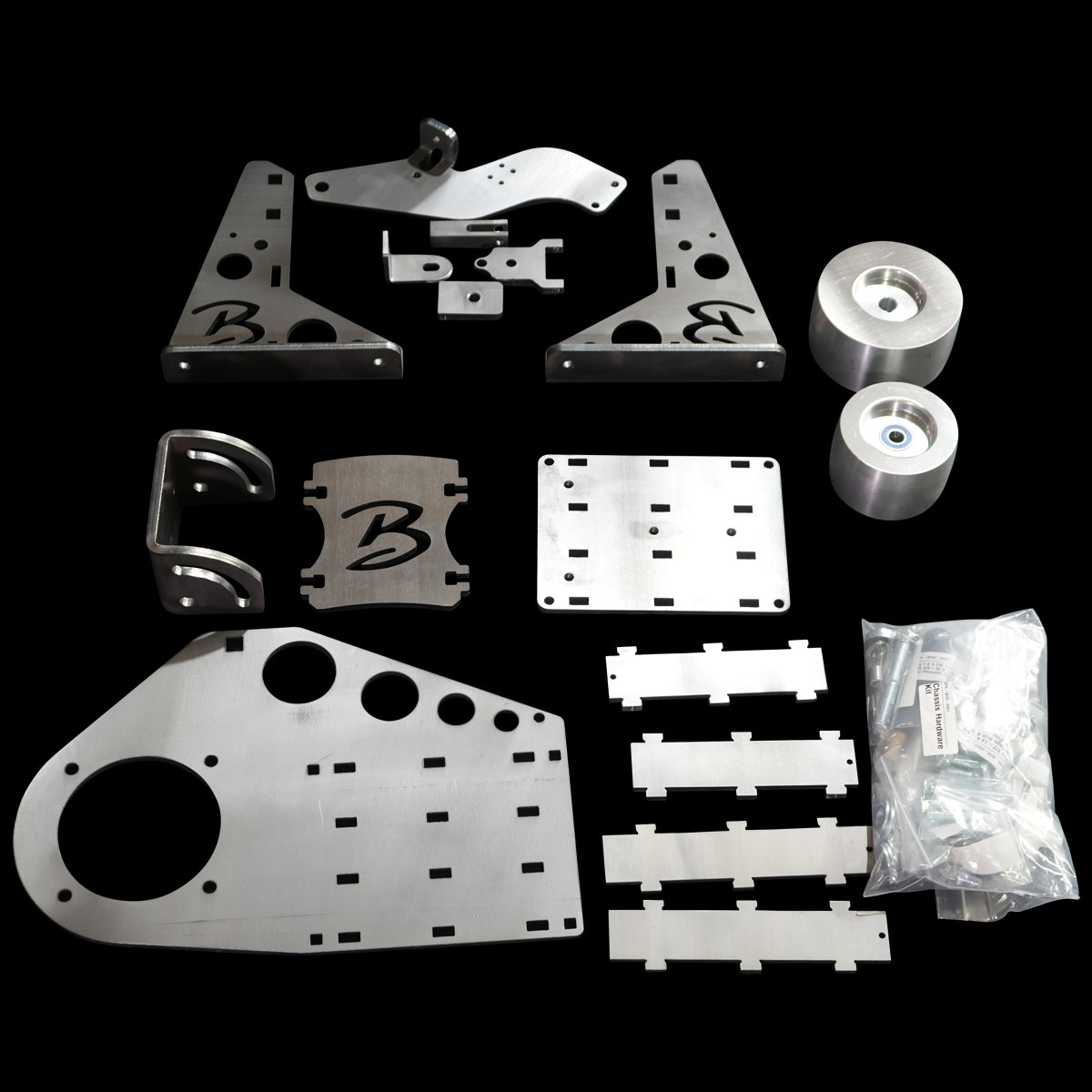

Bolt Together Kit or Powder Coated & Assembled:

Bolt Together Kit: Our bolt together kit arrives unpainted and unassembled. Grinder can be assembled approximately 2-3 hours going causally. Painting or finishing times will vary. Please keep the number of coats between 1 and 3 for easy assembly. VFD and/or Motor will arrive separately will need to be wired with instructions found here.

Powder Coated & Assembled: These grinders are powder coated, zinc plated, assembled, and tuned in our shop. Minimal final assembly is required due to transportation limitations. The required assembly consist of securing the motor, installing the drive wheel and tracking wheel. The installation should take no more than 10-20 min.

Notes:

VFD and/or Motor will arrive separately and will be pre-wired and only need to be mounted. (1HP and 2HP VFD motor options will be wired to 110V unless otherwise requested.

Changing the input voltage from 110V to 220V is simple. Move the J1 jumper inside the variable speed control from the 115V position to the 230V position (this is how the ports are labeled) and provide your own 220 plug that matches your outlet.

Please contact us to verify instructions on 220V wiring before plugging your controller.

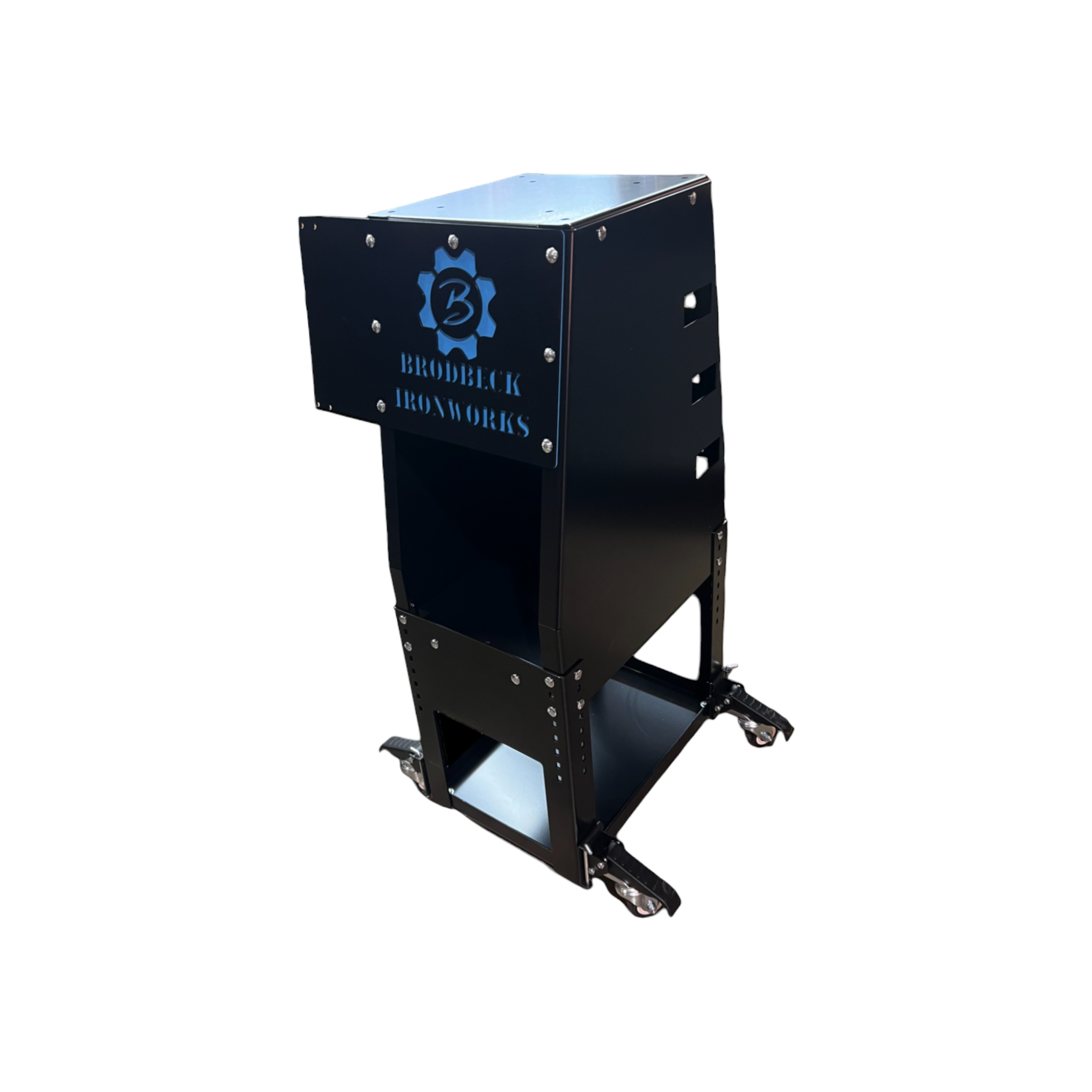

2x72 Stand:

No Stand: Supply your own table or pedestal to mount grinder to.

Stand No Castors No Powder Coating: Only leveling feet are provided for this option. The stand will not come painted. We recommend painting raw steel to prevent rusting. Assembly required.

Stand with Castors No Powder Coating: Four 2" smooth rubber castors are provided with this option in addition to leveling feet. The casters allow the machine to move about a flat level surface. The stand will not come painted. We recommend painting raw steel to prevent rusting. Assembly required.

Stand No Castors with Powder Coating: Only leveling feet are provided for this option. Stand is Powder Coated Black with a Zinc backed Logo plate. Assembly required.

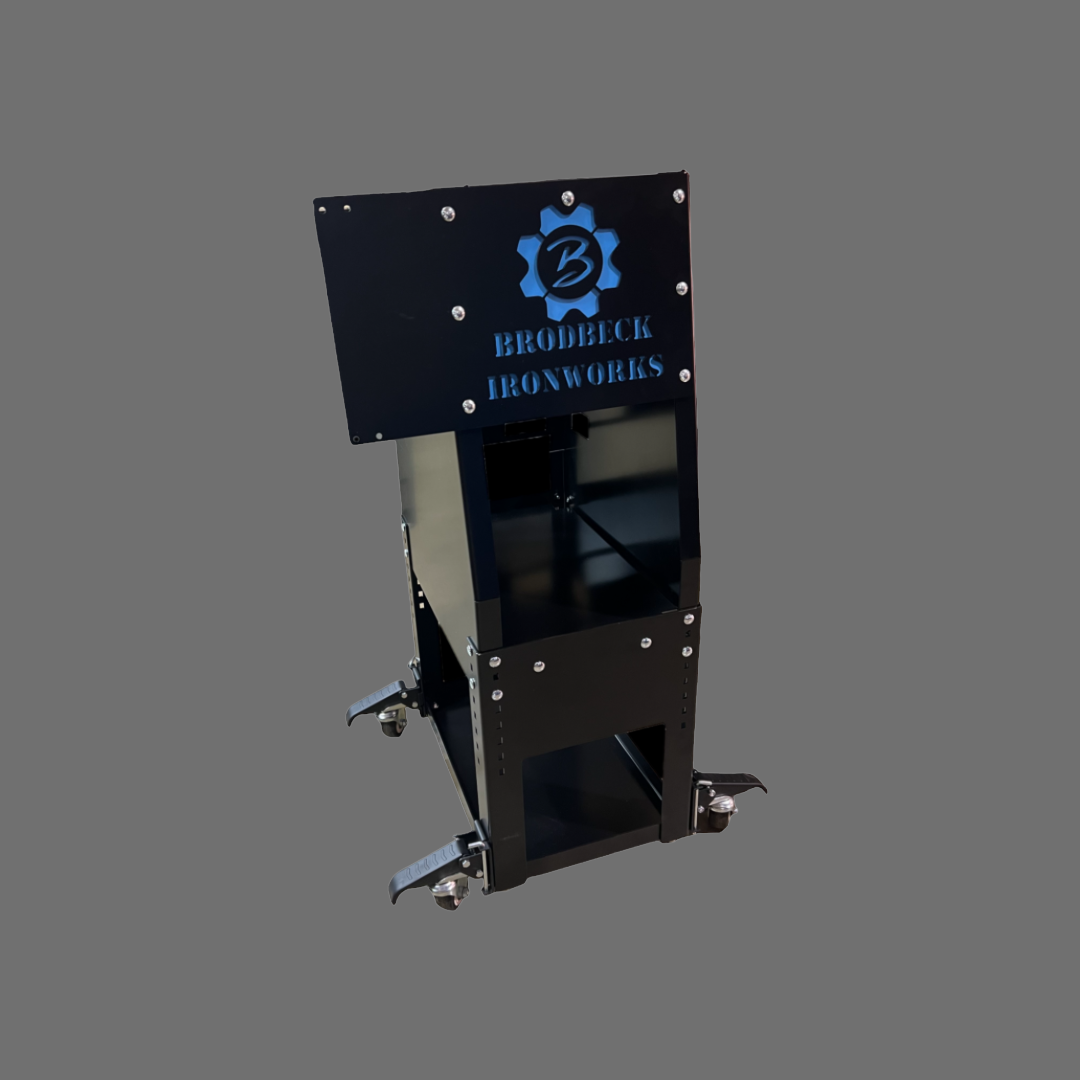

Stand with Castors with Powder Coating: Four 2" smooth rubber castors are provided with this option in addition to leveling feet. The casters allow the machine to move about a flat level surface. Stand is Powder Coated Black with a Zinc backed Logo plate. Assembly required.
